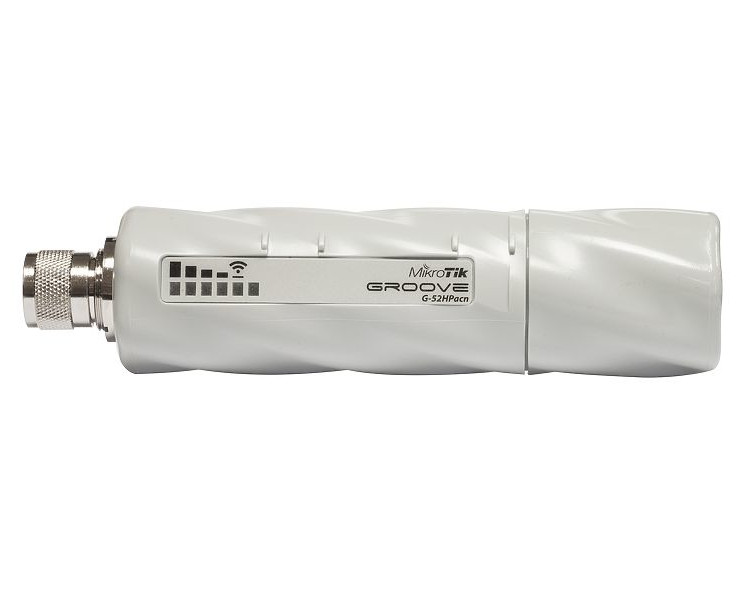

RADIO WIFI MIKROTIK GROOVEG-52HPACN Dual Band 2.4/5Ghz
Descripción
Un RouterBOARD inalámbrico con todas las funciones alimentado por RouterOS.
Resistente a la intemperie, duradero y listo para usar. Ahora con soporte 802.11ac, un puerto Gigabit Ethernet y banda inalámbrica seleccionable (2.4GHz o 5GHz, hasta 80 MHz). El nuevo puerto Gigabit le ayudará a aprovechar todas las ventajas de la tecnología inalámbrica de alta velocidad 802.11ac.
RBGrooveG-52HPacn (internacional) admite el rango de 2412-2484MHz y 5150MHz-5875MHz (el rango de frecuencia específico puede estar limitado por las regulaciones del país).
Specifications
| Details | |
|---|---|
| Product code | RBGrooveG-52HPacn |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 177 x 44 x 44 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $79.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| FAN count | Passive |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz/5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz/5 GHz number of chains | 1 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/n/ac, 802.11b/g/n |
| Wireless 2.4 GHz/5 GHz chip model | QCA9889 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC, IC |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -93 |
| 54MBit/s | 21 | -78 |
| MCS0 | 26 | -93 |
| MCS7 | 21 | -74 |
| MCS9 | 19 | -69 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 24 | -97 |
| 11MBit/s | 21 | -91 |
| 6MBit/s | 24 | -93 |
| 54MBit/s | 21 | -77 |
| MCS0 | 24 | -93 |
| MCS7 | 20 | -72 |
