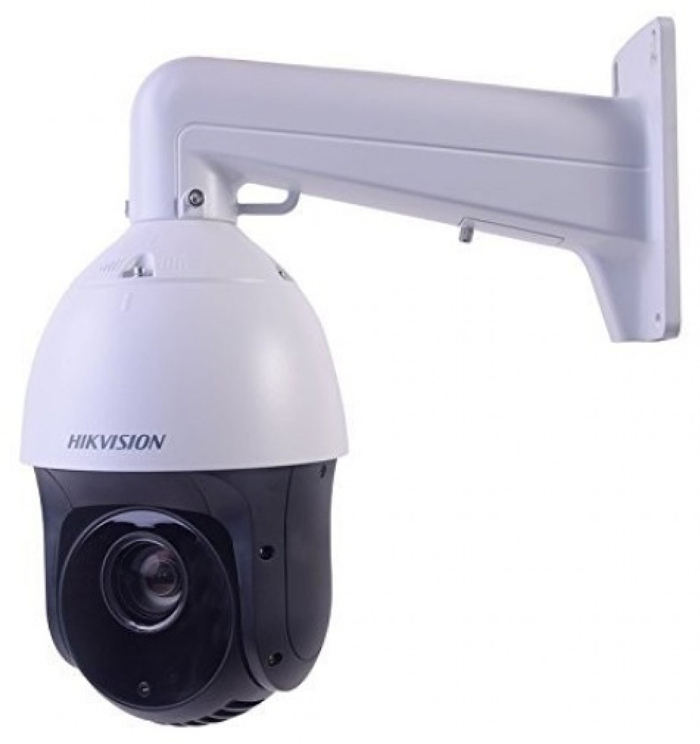

CAMARA SPEED DOME HIKVISION DS-2AE4123TI-D PTZ/23X
Descripción
| Camera | |
|---|---|
| Image Sensor: | 1/3" Progressive Scan CMOS |
| Effective Pixels: | 1280(H) × 720(V)/1920(H) × 1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color: 0.05Lux@( F1.6,AGC ON); B/W: 0.005Lux@( F1.6,AGC ON), 0 Lux with IR |
| White Balance: | Auto / Manual / ATW / Indoor / Outdoor |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 50dB |
| BLC: | ON/OFF |
| WDR: | Support |
| Shutter Time: | 1-1/10,000s |
| Day& Night: | ICR |
| Digital Zoom: | 16X |
| Privacy Masking: | 8 privacy masks programmable |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 4-92.0mm, 23x |
| Zoom Speed: | Approx.3s(Optical Wide~Tele) |
| Angle of View: | 49-2.2 degree(Wide-Tele) |
| Minimum Working Distance: | 10~1,000mm(Wide~Tele) |
| Aperture Range: | F1.4-F3.5 |
| Pan & Tilt | |
| Pan Range: | 360°endless |
| Pan Speed: | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
| Tilt Range: | -15°-90° (Auto Flip ) |
| Tilt Speed: | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 256 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Pattern: | 4 patterns, with the total recording time not less than 10 minutes |
| Power loss recovery: | Support |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | ON/OFF |
| Freeze Frame: | Support |
| Infrared | |
| IR irradiation distance: | 100m |
| IR irradiation angle: | Adjustable by zoom |
| General | |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | English |
| Power Supply: | 12V DC |
| Power Consumption: | Max.18W |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | Various mounting modes optional |
| Dimensions: | Φ164.5(mm)×295(mm) |
| Weight (approx.): | 2Kg (4.41Ibs) |
| Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
